Beam optics of the soft-landing deceleration stage

In the soft-landing set-up, the 50 kV ions are slowed down by simply applying a suitable potential to the target (actually, the entire set-up is put on high voltage!). The ions are kept focused on their destination by using an array of five electrostatic lenses. The target potential is derived from the ion source potential to ensure a well-defined potential difference. The ion optics are strongly influenced by the geometry close to the target. Optimal results could be obtained by designing the target together with He-flow crysostat such that a completly flat target is obtained. It turned out to be necessary to mount a diafragm just in front of the target in order to go to extremely low energies.
deceleration stage

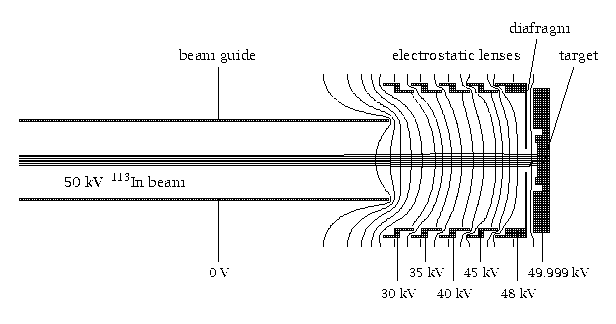

Ion trajectories together with the electrostatic field lines as obtained from program SIMION. Since this program is unable to handle space charge effects, the current density should be considered to be vanishingly small.


» back to old facilities

references

References

  1. C.R. Laurens, L. Venema, G.J. Kemerink, and L. Niesen
    Soft-landing deposition of mass-separated radioactive isotopes
    Nucl. Instr. and Meth. in Phys. Res. B129 (1997) 429
  2. C.R. Laurens
    Sites and diffusion of probe atoms measured after soft-landing ion deposition
    PhD thesis (Rijksuniversiteit Groningen, 1997)
